6000 SERIES SCRAPERS

  • 2 inch axle pivot pins
  • replaceable axle pin bushings
  • 4 x 10 hydraulic cylinders 2.5 inch rods
  • 1.75 inch hydraulic cylinder cross pins
  • Tilt standard
  • 6 x 6 square tube rear axle
  • ½ plate back, double plated bottom half to inch
  • 36 inch side height
  • 3/4 x 8 curved grader blades
  •  10 to 16 ft widths
  • 4 x 8 tilt cylinder
  • 11.00 x 16 tires


Weight

  • Approximately 4,400 – 5,500 lbs


Other Options:

  • Warning lights

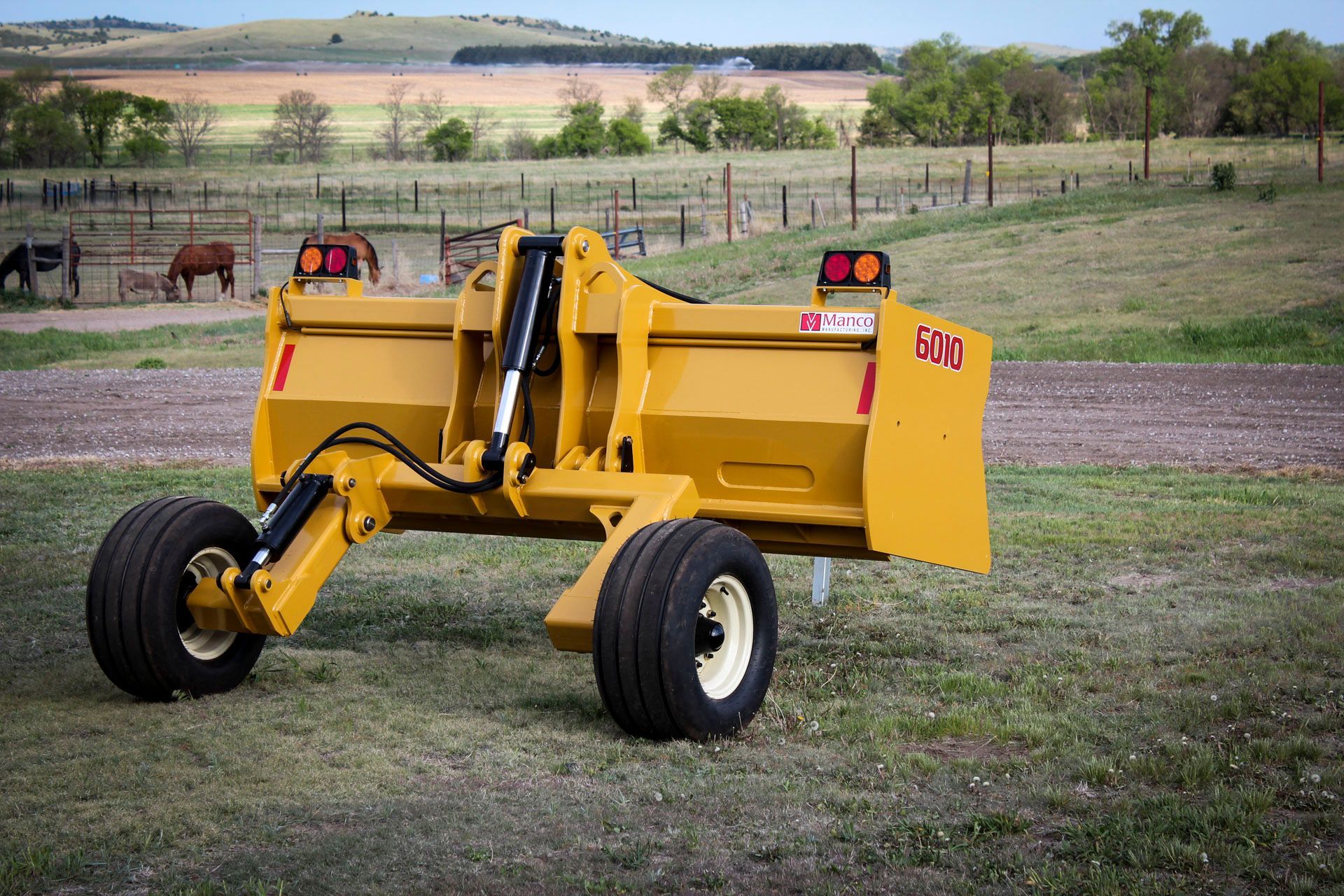

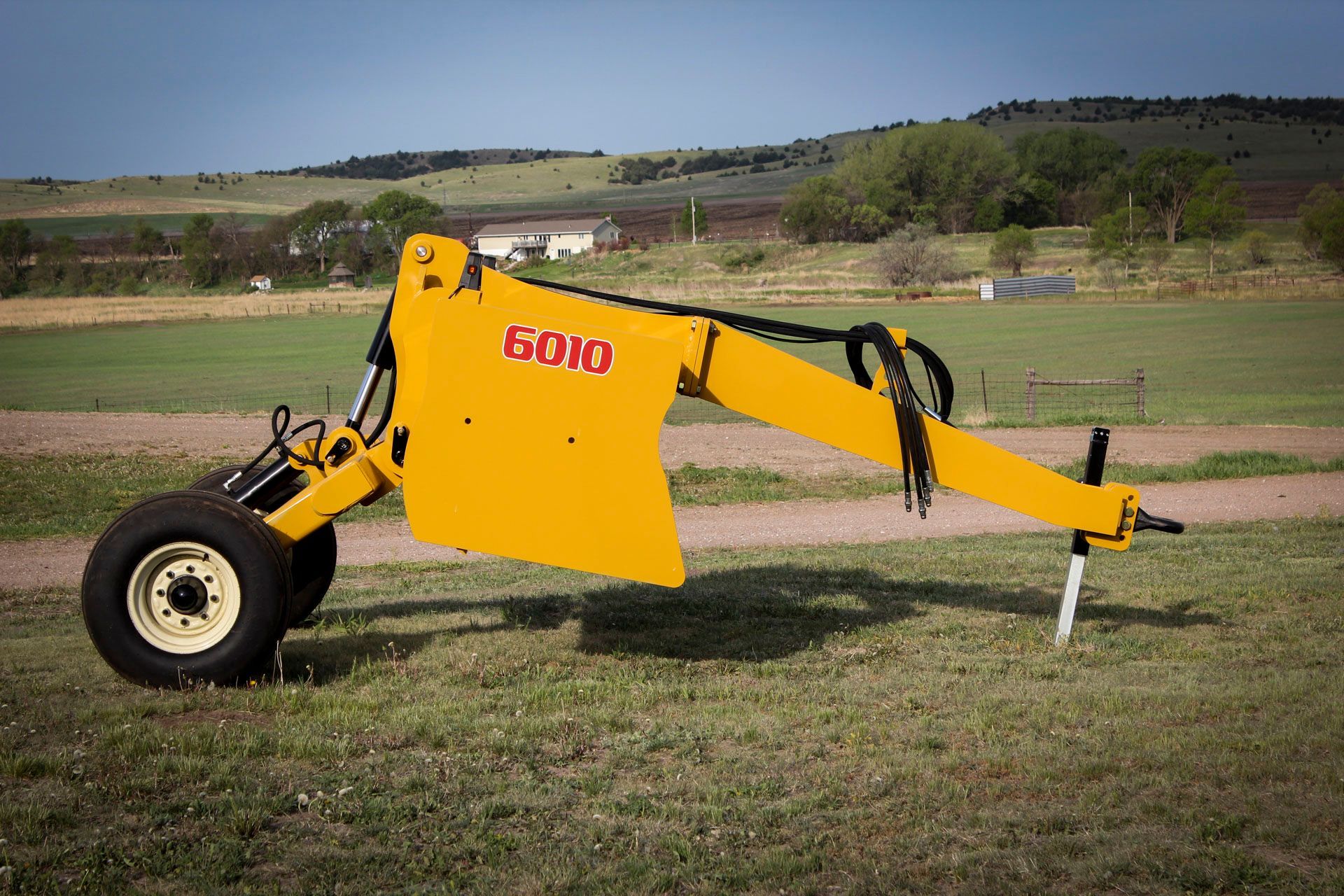

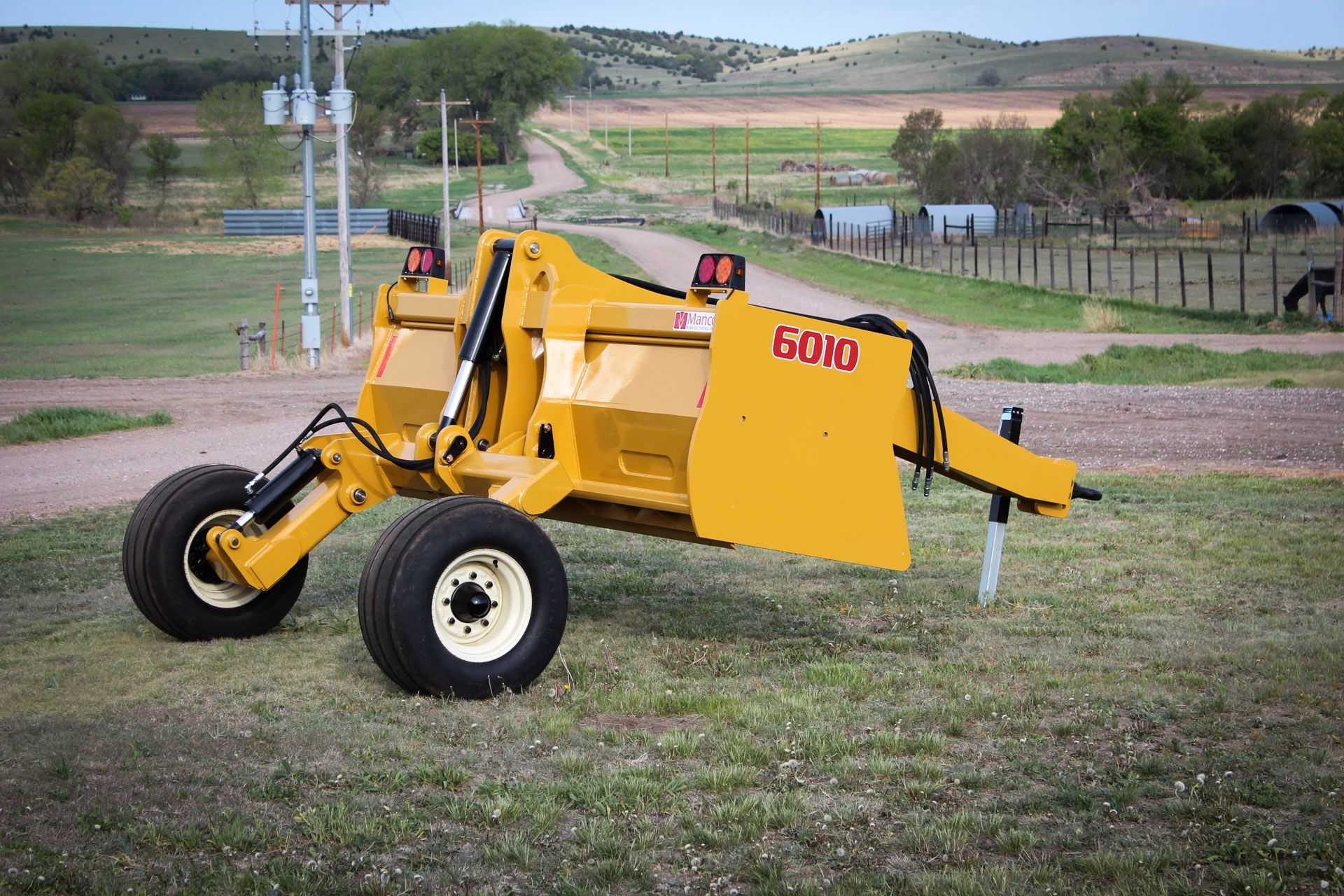

Get the Job Done Right with Heavy-Duty Model 6000 Scrapers

The model 6000 scrapers have 36 inch back and sides. These scrapers are one of the heaviest scrapers in their class. They are used to groom roads, and heavy enough to cut hard ground. Available widths up to 16 feet. Ideal for use as an earth moving scraper.

FEATURES/BENEFITS

  • 3/4 Inch Side Plates
  • 8,000 Lb Hub & Spindles
  • 4×10 Hydraulic Cylinders 2.5 Inch Rods
  • 1.75 Inch Hydraulic Cylinder Cross Pins
  • Tilt Standard
  • Widths from 10ft to 16ft Wide
  • Raised Blade Height 20 Inches
  • Approximately 4,400 – 5,500 Lbs

APPLICATIONS

  • Building Pads for Residential or Commercial Sites
  • Land Leveling for Field Irrigation
  • Building Wet Land Projects
  • Road Construction
  • Maintaining Feedlots
  • Water Ways and Terrace Channels
  • Building Lagoons and Runoff Pits
